6inch Rotulos LED de precios para gasolineras 8888

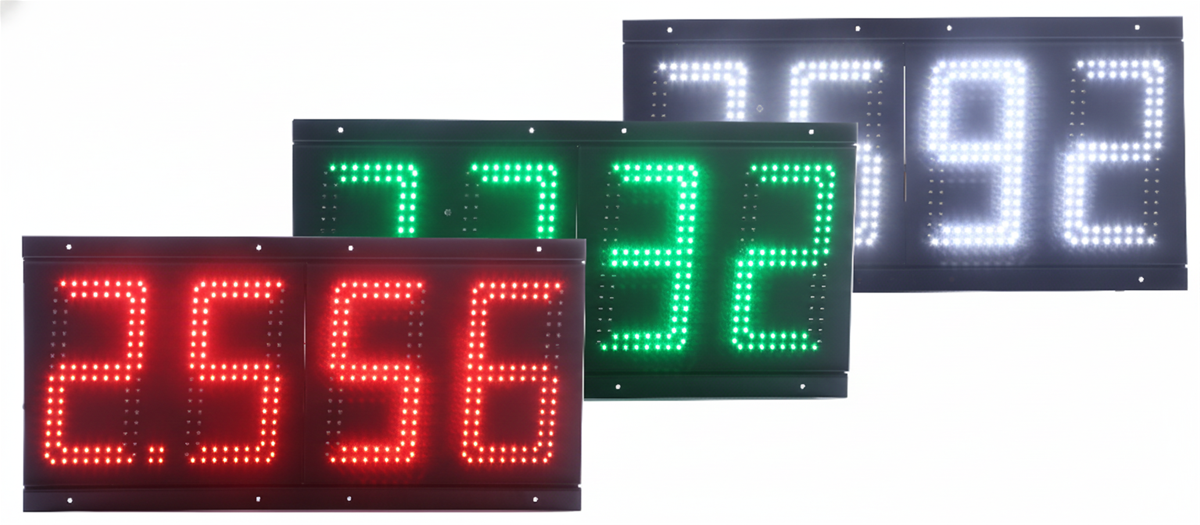

6-inch, 8-inch, 10-inch LED Gas Price Display Signs

4-Digit LED Gas Price Display 8.888

Model: TT15/TT20/TT25

LED Gas Price Display Feature:

Modular LED Board

Modular price board design makes it easy to maintain

We built the gas price display with a top rail bracket and a bottom rail bracket to help complete the installation in a fast way.

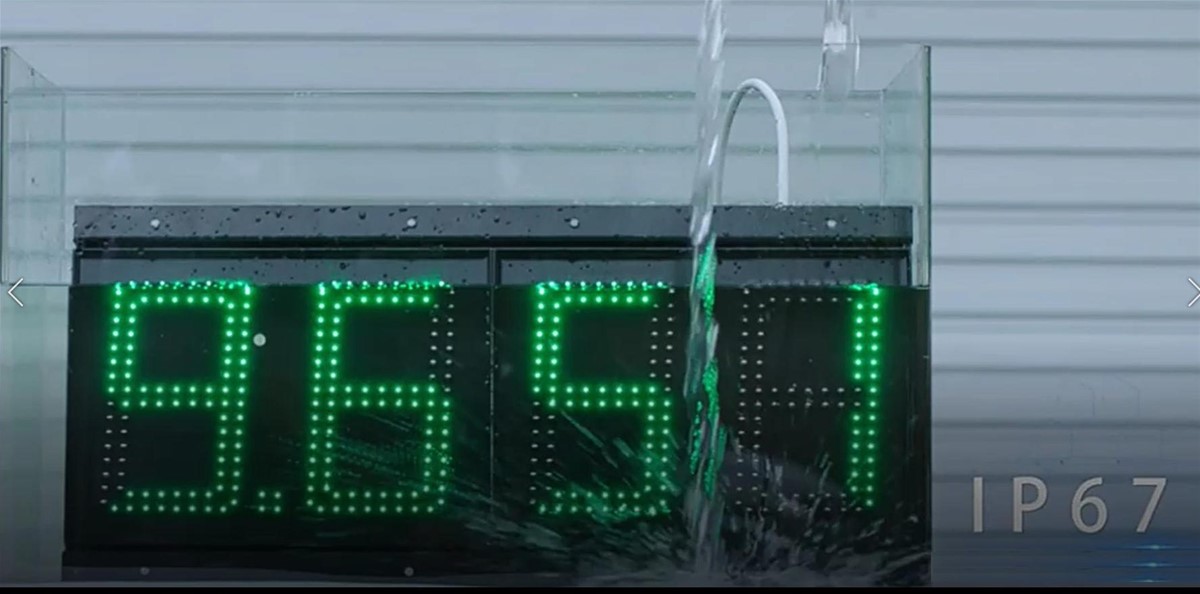

IP67 ingress protection LED gas display board, weather-resistant.

Encapsulating technology ensures gas price signs work strongly in severe weather conditions.

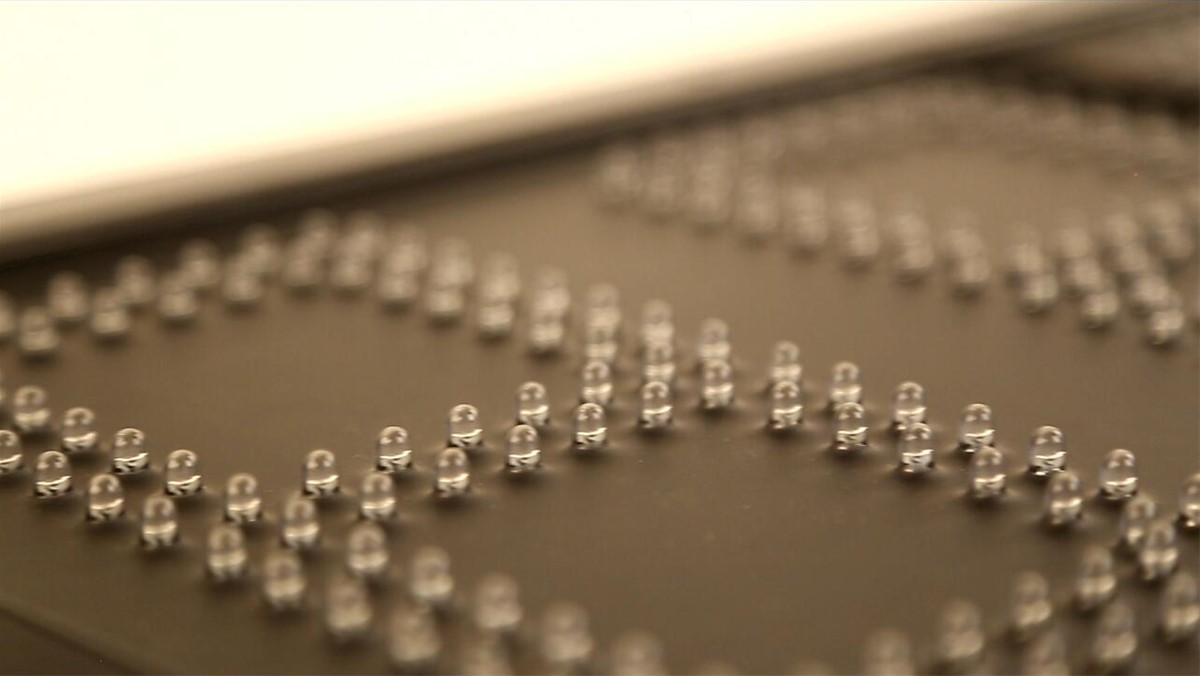

Build with Through-hole LEDs

Through-hole LEDs make the fuel price sign super bright and easier to recognize and read from a far distance.

Plug-and-play design makes the full price system 100% water-proof

Our LED gas price panels are 100% plug-and-play

4T plug connectors are for the power electricity transfer connection

7T plug connectors are for data transfer connectionswaterproof

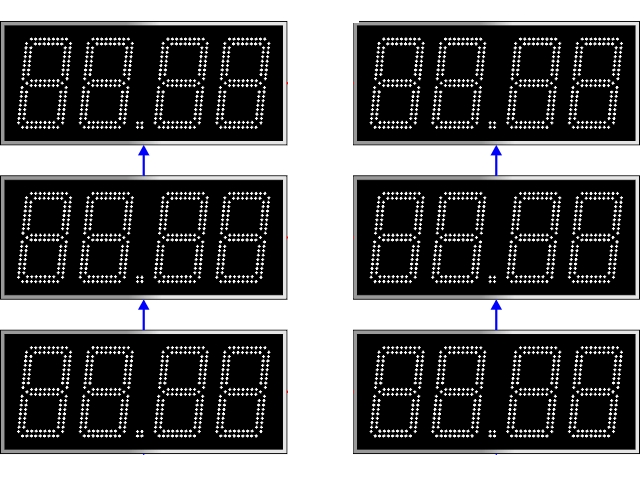

Double-sided Price System

You can have 1-10 oil price products on one side of the toem pylon

Double side price system, when you send price to one side, price update instantly on both sides

SPEC AND FUNCTION

Price format: 8.888

LED color: red, green, blue, amber, and white colours,

IP rating: IP67 rating ingress protection,

LED type: DIP through-hole 5mm oval or round LED lamps,

LED visual angle: 30/70 degrees or  55 degrees

Work Voltage: DC12V output, 110V/220VAC

Max power consumption:15W/Red, 25W/Green/Blue/White

Price qty on one side: our program works up to 10 prices on one side

Control type: remote wireless price update, available to operate on mobile App, hand-held RF remote, PC programming,

If needed to combine with the pump P.O.S cash machine protocol. Pls contact us for a solution.

Certificate: CE, RoHS,

Custom size: Contact us if you ask for a different size

Check before an order per:

1. Do you want a single-sided or double-sided gas price pylon?

Order accessories:

Price system wiring guide:

Ageing testing:

72-hour aging test before order delivery

Each order goes with 100% ageing testing up to 72hours before departure.

Package for shipment :

For air or sea shipment,

Orders can be packed by pallet or wood cases for air and sea shipping.

For sample order, carton shipment default
