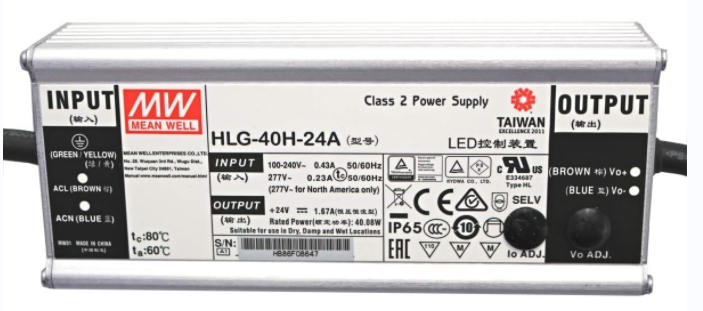

HLG-40H-24AB 40W 24V IP67 MEANWELL LED Driver Dimmable

HLG-40H-24AB 40W 24V IP67 MEANWELL LED Driver Dimmable

Brand: MEAN WELL

Item Number: HLG-40H-24

Series: HLG-40H

Certification: CE,RoHS,UL,

Description: AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC; Output 24Vdc at 1.67A; IP67; Cable output

Packing Quantity: 20

Application: LED EN 61347

Net Weight: 700 grams

Technology: AC/DC

Power Format: Box Type - Enclosed

Enclosed Metal Housing: Yes

Output Power (W): 40W

Output Voltage (V): 24V

Output Current (A): 1.67A

Input Voltage (V): 110/230 universal input, 90 - 305V

IP Rating: IP67

Width: 61.5mm

Height: 36.8mm

Depth: 171mm

Dimming Technology: No Dimming

Housing Type: Metal

Inquiry Now

HLG-40H-24 40W 24V MEANWELL LED DRIVER Adjustable &dimmable

40H series is a 40W AC/DC LED driver featuring the dual mode constant voltage and constant current output.

HLG40H operates from 90~305VAC and offers models with different rated voltage ranging betwen 12V and 54V.

Thanks to the high efficiency up to 89.5%, with the ganless design, the entire series is able to operate for -40~ +80 case temperature under free air convection. the design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.

HLG-40H is equipped with various function options, such as dimming methodologies,so as to provide the optimal design flexibility for LED lightingsystem.

The HLG-40H-24AB is a high-quality 40W LED driver designed and manufactured by MEANWELL, a leading brand in power supply solutions. With a voltage output of 24V and an IP67 rating, this driver is suitable for outdoor and indoor LED lighting applications, providing reliable and efficient power delivery in various environments. Additionally, its dimmable feature allows for customizable lighting control, making it a versatile choice for lighting systems that require adjustable brightness levels. The HLG-40H-24AB is a durable and dependable LED driver that meets the demands of modern lighting technology.

Feature

Application

· Constant Voltage + Constant Current mode output

· Metal housing with class I design

· Built-in active PFC function

· Class 2 power unit

· IP67 /IP65 rating for indoor or outdoor installations

· Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming

· Typical lifetime > 62000 hours

· 7 years warranty

· LED street lighting

· LED high-bay lighting

· Parking space lighting

· LED fishing lamp

· LED greenhouse lighting

· Type"HL"for use in Class I, Division 2hazardous (Classified) location.

A high-efficiency design of HLG series. with 7 years warranty and HVG(C) series with the high-voltage input 180-528V AC,

It is suitable for general 230V/347V mains supplyor 1 phase 380V AC voltage from 3 phase input. Allmodels are listed for choices.

Most of the models offer 0-10V dimming function, easily integratedinto smart city lighting control.

Specification

40W Constant Voltage + Constant Current LED Driver HLG-40H series

AC INPUT VOLTAGE RANGE	90 ~ 305VAC 127 ~ 431VDC
AC INRUSH CURRENT(Typ.)	COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
DC ADJUST RANGE	±10% rated output range, (A type only)
CURRENT ADJUST RANGE	60~100% via potentiometer (A type only)
OVER CURRENT	95 ~ 108%
OVER CURRENT	Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE	109%~145% rated output voltage, Shut down o/p voltage, re-power on to recover
SETUP, RISE TIME	500ms ,80ms/ 115VAC 500ms ,80ms/230VAC
WORKING TEMP.	Tcase= -40 ~ +80C ( Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
SAFETY STANDARDS	UL8750(type”HL”) , CSA C22 .2 No . 250 .0-08 , BS EN/EN/AS/NZS 61347- 1 ,BS EN/EN/AS/NZS 61347-2- 13 independent , GB19510 . 1 ,GB19510 . 14 ,EAC TP TC 004 ,KC61347- 1 ,KC61347-2- 13(except for AB-type) , IP65 or IP67 approved ; J61347- 1 ,J61347-2- 13 (except for B ,AB and D-type) ; design refer to BS EN/EN60335- 1(by request)
WITHSTAND VOLTAGE	I/P-O/P:3 .75KVAC I/P- FG:2KVAC O/P- FG:1 .5KVAC
DIMENSION	17161.536.8mm (LWH)
PACKING	0.73Kg; 20pcs/ 15.6Kg/0.9CUFT

HLG-40 series come with different voltage per your request.

Model No .	Output	Tol .	Effi .
HLG-40H- 12	12V, 0~3.33A	±2. 5%	86. 5%
HLG-40H- 15	15V, 0~2.67A	±2.0%	86. 5%
HLG-40H-20	20V, 0~2.00A	±1.0%	88.0%
HLG-40H-24	24V, 0~1.67A	±1.0%	88.0%
HLG-40H-30	30V, 0~1.34A	±1.0%	88. 5%
HLG-40H-36	36V, 0~1. 12A	±1.0%	88. 5%
HLG-40H-42	42V, 0~0.96A	±1.0%	88. 5%
HLG-40H-48	48V, 0~0.84A	±1.0%	89. 5%
HLG-40H- 54	54V, 0~0.75A	±1.0%	89. 5%
