High-intensity 5mm DIP oval CREE LEDs deliver clear, stable price display in sunlight and at night. 12 inch high LED digits provide a typical visual distance of 100–300m.

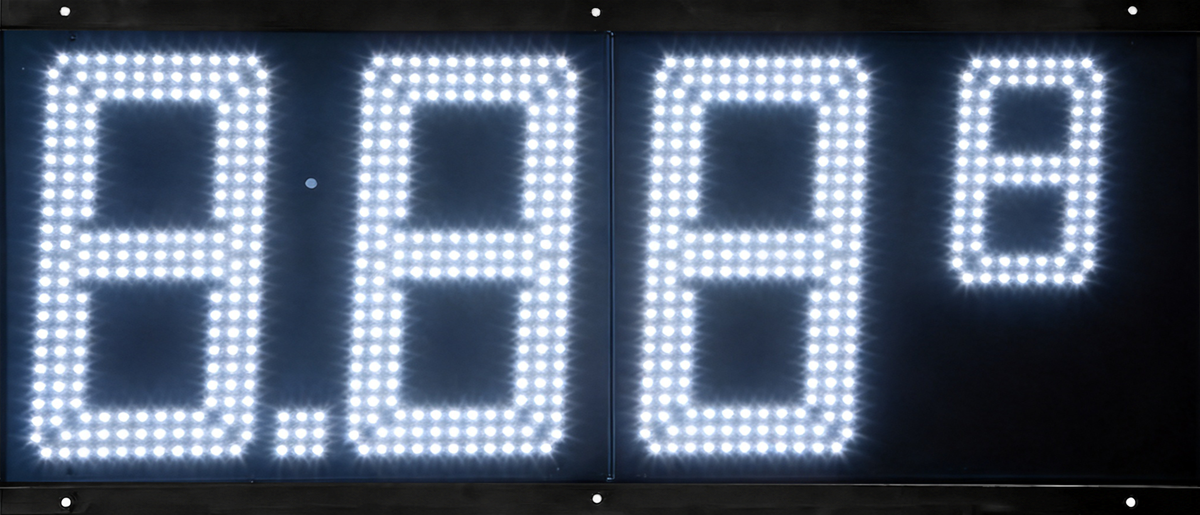

Premium 12" IP67 LED Fuel Price Display (8.88⁸ Format)
Reliable and durable 12-inch (30 cm) LED fuel price display engineered for gas stations and petrol forecourts. Features a 4-digit 8.88⁸ format, ultra-bright CREE White LEDs for superior long-distance visibility, and effortless price updates via RF wireless remote control.
IP67 Waterproof 12-Inch Digits RF Wireless Update OEM/ODM Available
Stop changing fuel prices manually in rain, wind, or heat. Our TT30 series is built for fast remote updates, excellent road readability, and stable performance in harsh outdoor conditions.
Ideal for station upgrades, rebranding, new forecourt builds, and distributor supply programs.
High-intensity 5mm DIP oval CREE LEDs deliver clear, stable price display in sunlight and at night. 12 inch high LED digits provide a typical visual distance of 100–300m.
Digit PCBs are protected with encapsulating glue on both sides and built in an outdoor-rated structure. IP67 ingress protection supports reliable operation in rain, dust, and humidity.
Update prices quickly without climbing pylons or rewiring. RF remote control improves daily operation safety and efficiency.
Each panel uses 2 modular PCB sections, simplifying maintenance and reducing downtime for station operators.
| Item | Specification |
|---|---|
| Model | TT30-4W-CREE-S8 |
| Digit Size | 12 inch high digit (30 cm) |
| Visual Distance | 100–300 m |
| LED Type | DIP oval 5mm CREE LEDs |
| LED Color | CREE white (custom colors available) |
| Wavelength | N/A (White) |
| Luminous Intensity | 5000–10000 mcd |
| Viewing Angle | 55° |
| LED Quantity per Panel | <769 pcs |
| Digits per Panel | 4 digits |
| Price Format | 8.88⁸ (customizable) |
| PCB Quantity per Panel | 2 pcs (8.8 + 8⁸) |
| Output Voltage | DC 12V |
| Input Voltage | AC 110–240V (via external power supply) |
| Power (Single Panel) | Max 35W |
| Power (4 Panels) | Max 140W |
| Ingress Protection Grade | IP67 (Outdoor waterproof and weather-resistant) |
| Operating Temperature | -20°C to 65°C |
| Compliance | CE approved panel; CE/UL approved PCB & silicone materials |
| Welding Material | Lead-free welding |
| Overall Dimension (L×W×T) | 917 × 400 × 25 mm (approx. 36" × 16" × 1") |
| Panel Weight | 5.5 kg |
| Warranty | 2-year factory limited warranty (extension optional) |
Replace manual or old display systems with modern RF-controlled IP67 LED pricing panels.
Deploy standardized pricing modules with custom formats and easy pylon integration.
Support chain-wide replacement with consistent appearance, color, and control method.
Factory-direct supply with OEM labels, custom packaging, and stable lead times.

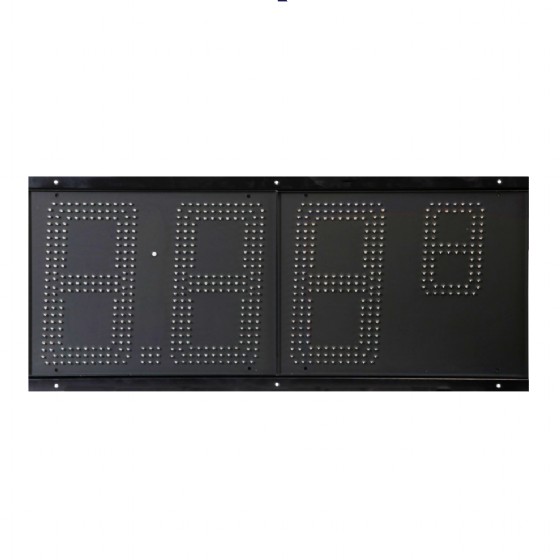

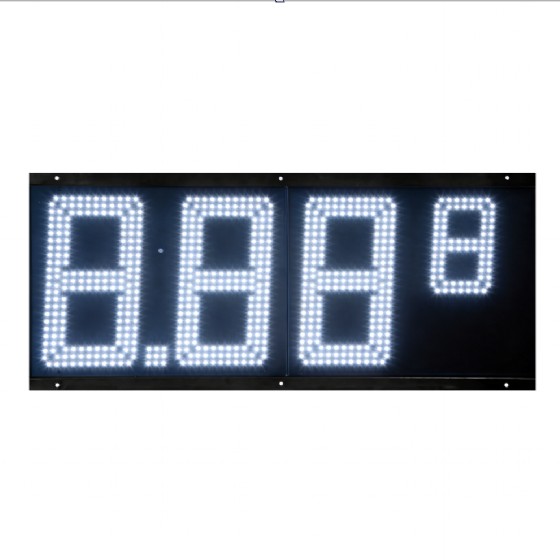

12" panel in 8.88⁸ format, high-quality DIP oval CREE LEDs.

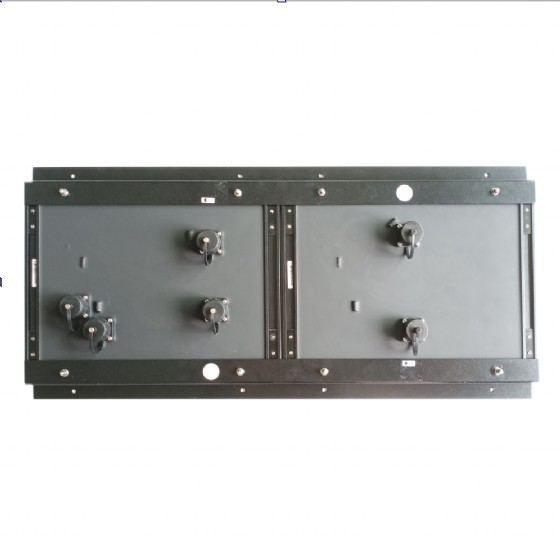

Built-in rail bracket system for straightforward installation and alignment.

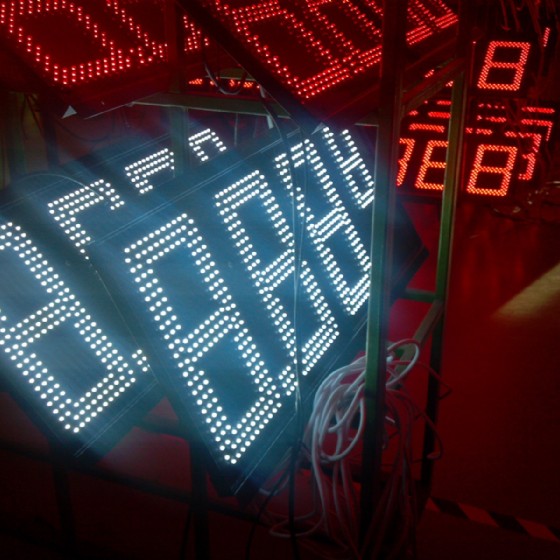

While white is highlighted here, available LED colors also include amber, red, green, and blue.

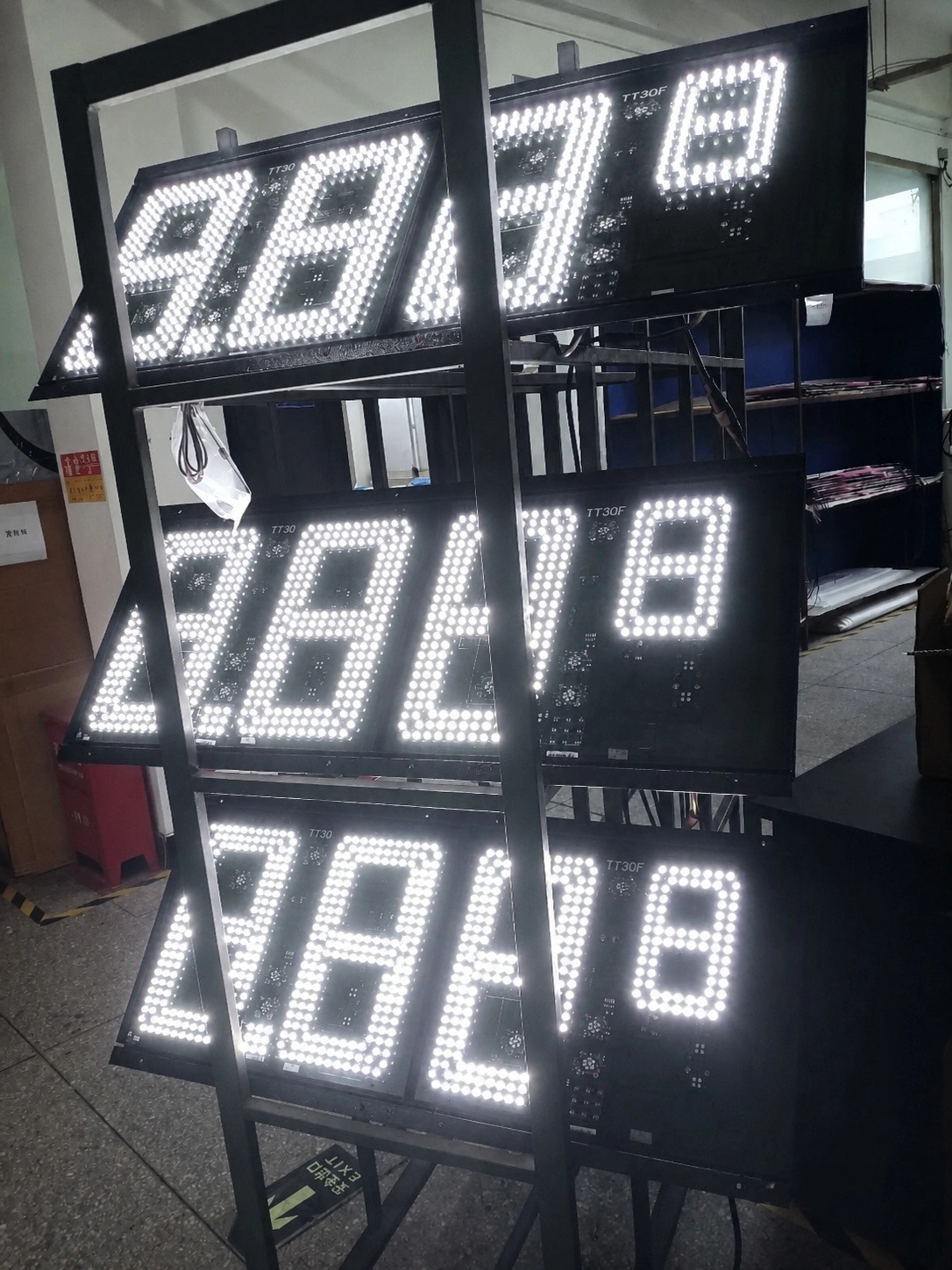

Each unit is produced under strict process control and tested before shipment, including aging tests for stable field performance.
Outdoor ingress protection structure (IP67) Encapsulation protection for digit boards Lead-free welding process Factory aging & function verification Export-safe packaging options
Get a factory-direct quotation for your gas station project, distributor order, or OEM/ODM customization.
